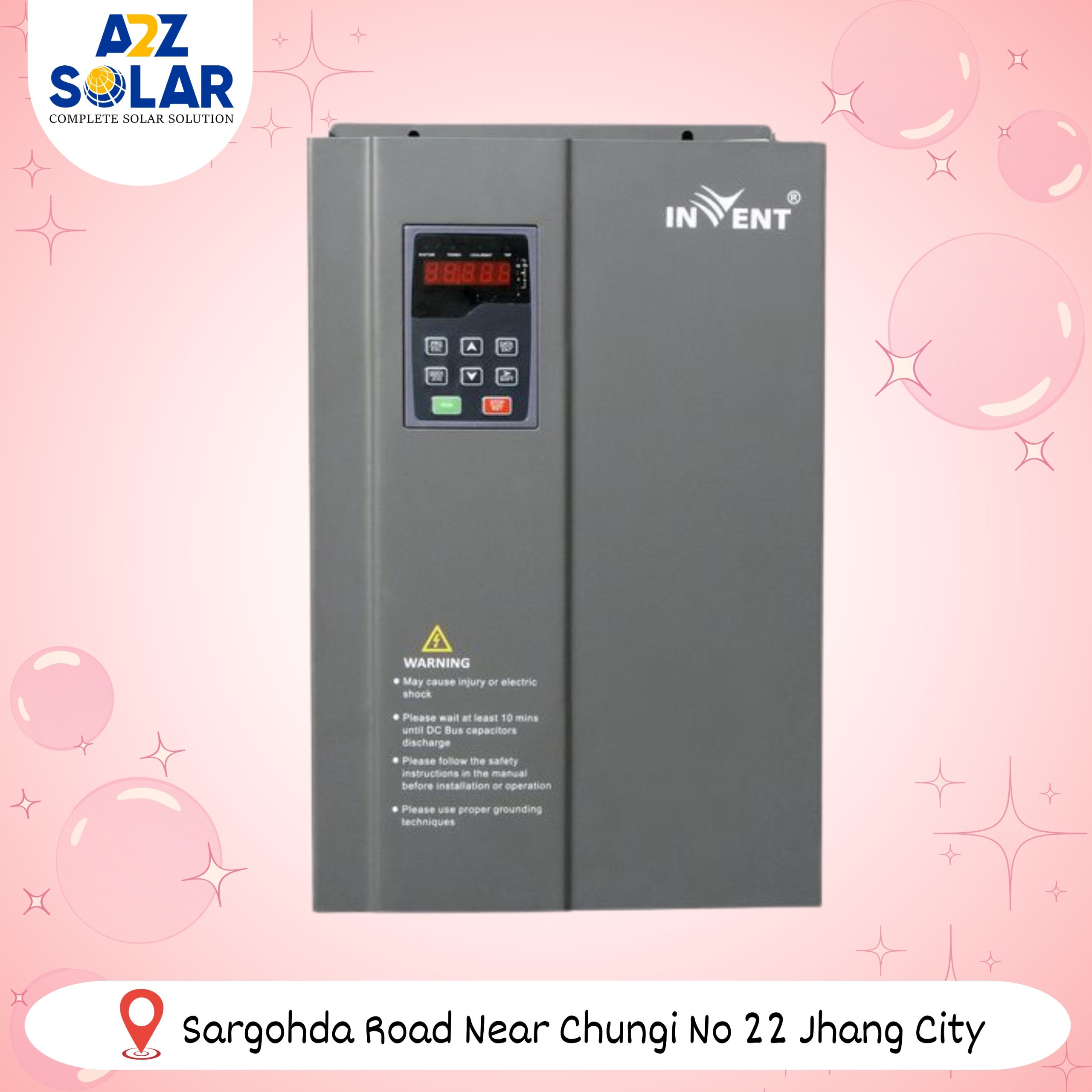

Invent VFD ED510
The ED510 Series is a universal inverter designed for general-purpose motor control in applications where extreme speed precision isn’t necessary—such as pumps, fans, milling machines, and more.Invent Power Tech It delivers reliable performance, helps reduce equipment wear by minimizing initial torque shocks (down to 0%), and offers energy savings along with reduced maintenance costs.

Key Features

• Control Modes: The ED510 supports multiple control strategies:

  • V/F (Voltage/Frequency) control

  • Sensorless Vector Control (SVC)

  • Torque Control ModeScribd

• Advanced Functionalities:

  • Built-in PID controller

  • Traverse control to maintain operation through power interruption

  • Speed trace function for smooth startup transitions

  • Integrated Simple PLC with up to 16-step multi-speed programmingScribd

• I/O and Protection:

  • Up to 7 programmable digital inputs (including a high-speed pulse input)

  • 2 relay outputs

  • 2 analog outputs configurable for 0–10 V or 0–20 mA signalsScribd

  • Comprehensive protection with ~23 fault detection mechanisms (overcurrent, thermal, under/over-voltage, phase loss, overload, etc.)Scribd

• Performance Specs:

  • Input Voltage: 220 V or 380 V ±15%

  • Input Frequency Range: 47–63 Hz

  • Output Frequency: 0–400 HzScribdnextdigitalera.com+1

• Overload Capacity:

  • 150% rated current for 60 seconds

  • 180% rated current for 10 secondsScribd

Model Lineup

The ED510 Series spans a wide array of power ratings and configurations, including single-phase and three-phase models:

• Examples include:

  • ED510‑0R7C‑S2, ED510‑1R5C‑S2, ED510‑2R2C‑S2 (single-phase)

  • ED510‑0R7C‑2 through ED510‑1100C‑4 (three-phase variants)Scribd

Documentation & Downloads

Available resources include downloadable catalogs and user manuals that offer technical specs, wiring diagrams, installation instructions, and programming details.Invent Power TechScribd

Use Cases & Applications

The ED510 is tailored for sectors like cement, steel, printing & packaging, and others requiring robust, flexible motor control.Invent Power Tech+1 It’s a dependable choice for industries needing solid performance without the cost of high-precision inverters.
