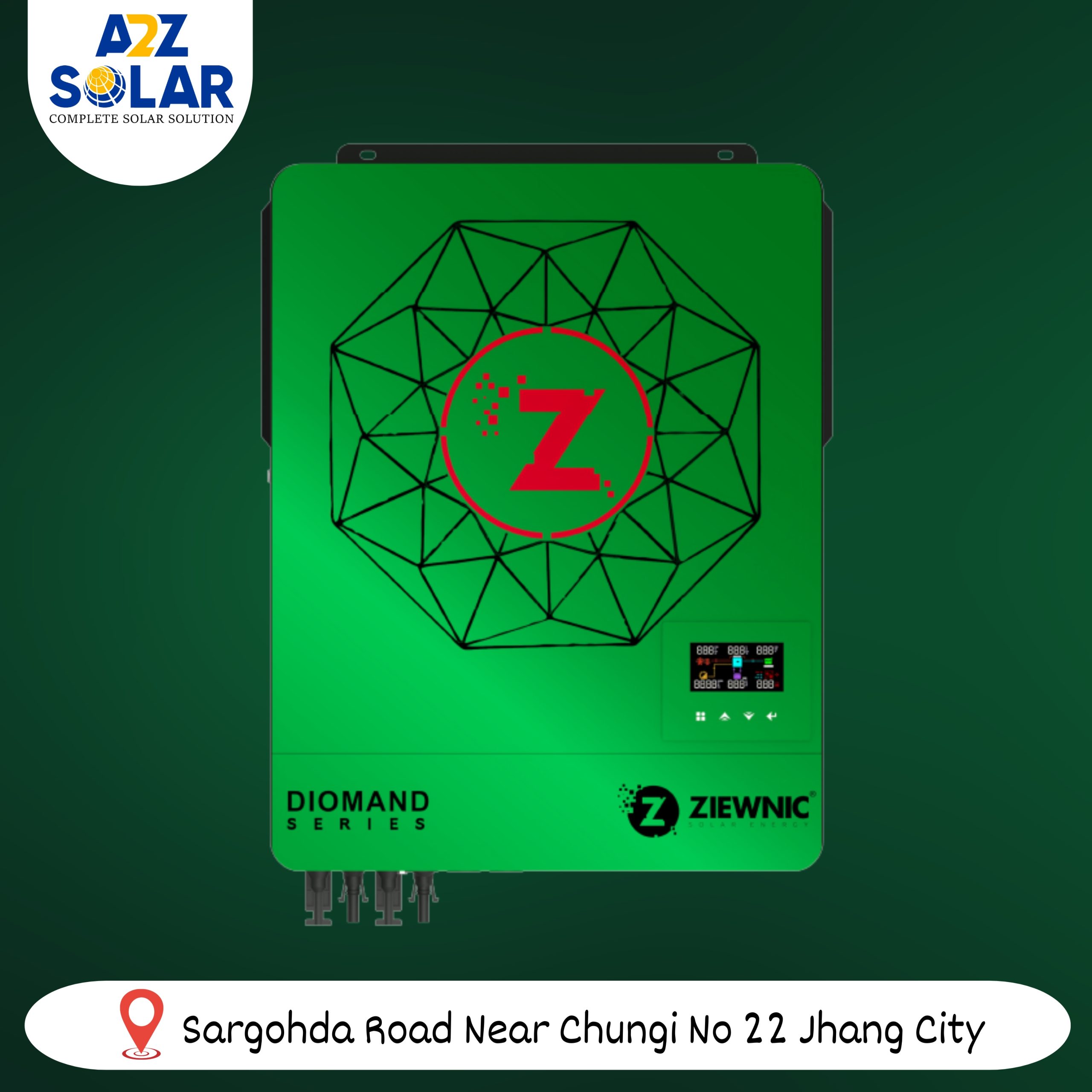

ON/OFF/MKS/KS Solar Hybrid Inverter 10.5 (KW) 5G PV13000


Introducing 1st Time In Pakistan Real 5th Gen Inverter, Supporling high efficiency Mosfet, Chopper with bigger size
DIAMOND Series Inverter supports Multiple operation modes (ON/OFF/MKS/KS)
100% Pure Sine Wave Solar Inverter
Output power factor 1.0
Optional Wi-Fi available for IOS/Android devices
Inverter running with battery & without battery
1 button restore setting options in program (00)
Battery equilizations in program (30)
Record fault code feature in program (25)
Adaptable to main Voltage / generator power
Conformal coating to prevent from dust and humidity
Built-in automatic electronics breaker for overload & short circuit protection
New Color Screen LCD function design with touch buttons
Built-in anti dust for harsh environment
Compatible with all kinds of Lithium Batteries
98% Real time sharing
Overload Protection on 120% Load
Surge Capacity 2* Rated Power for 5 Seconds
Battery charging current upto 260A (AC+Solar)
MPPT Based Solar Charge Controller (160A)
High PV input voltage range (90~550 VDC)
Two output for normal and heavy load
Maximum input current 27A
Multiple operation modes (On Grid / Of Grid / Hybrid
Grid-Tied net metering feature with 100% reverse grid feeding
Builtin Zero export
Designed and Engineered in Taiwan



Phase1-PhaseMaximum PV Input Power13000 WRated Output Power10500 WMaximum Solar Charging Current160 AGRID TIE OPERATIONPV INPUT ( DC )Nominal DC Voltage/Maximum DC Voltage360 VDC/500 VDCStart-up Voltage/Initial Feeding Voltage90 VDC/120 VDCMaximum DC Voltage90~450 VDCNumber of MPPT Trackers/Maximum Input Current27 AGRID OUTPUT ( AC )Nominal Output Voltage220/230/240 VACOutput Voltage Range195.5-253 VACNominal Output Current47 APower Factor>0.99Feed-in Grid Frequency Range49~51?HzEFFICIENCYMaximum Conversion Efficiency( Soar to AC)98%TWO LOAD OUTPUT POWER(V2.0)Full Load10500 WMaximum Main Load10500 WMaximum Second Load(battery mode)3500 WMain Load Cut Off Voltage44 VDCMain Load Return Voltage54 VDCOFF-GRID OPERATIONAC InputAC Start-up Voltage/Auto Restart Voltage120-140 VAC/180 VACAcceptable Input Voltage Range90-280 VAC or 170-280 VACMaximum AC Input Current50 ANominal operating frequency50/60HzSurge power21000 WBATTERY MODE OUTPUT ( AC )Nominal Output Voltage220/230/240 VACOutput WaveformPURE SINE WAVEEfficiency(DC to AC)94%BATTERY & CHARGERNominal DC Voltage48 VDCMaximum Charging Current (Solar to AC)160 AMaximum AC Charging Current140 AGENERALPHYSICALDimension,D x W X H(mm)420*310*110Net Weight(kgs)14.5INTERFACECommunication PortRS232/WI-FI/GPRSENVIRONMENTCommunication Port-10~50?C
